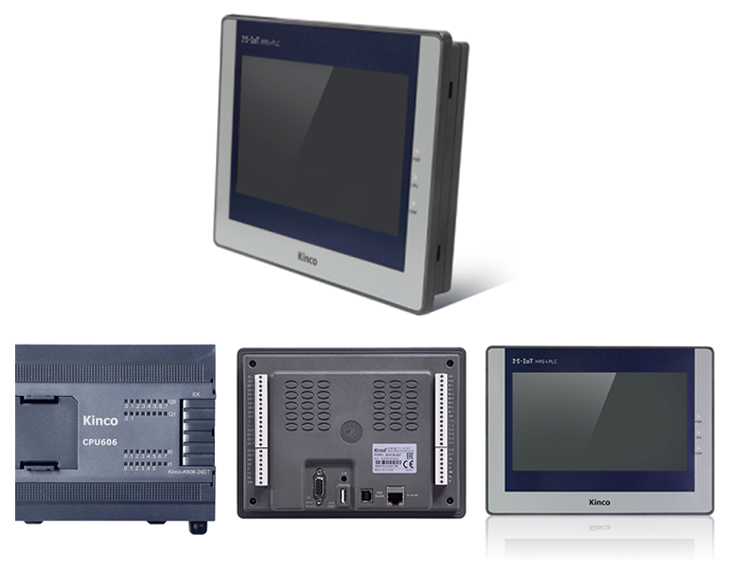

MK Series HMI+PLC

Industrial-grade design, high-performance CPU, using the new DTools software technology platform for HMI programming.
Provides remote download, PLC pass-through communication over network, VNC remote monitoring, and equipment management functions.
Standard Ethernet interface with USB storage expansion to connect additional peripherals.
Supports a wide range of expansion modules to meet diverse application needs.

SPECIFICATION

The Kinco MK series all-in-one HMI-PLC retains the high cost performance of the Kinco HP series of all-in-one machines, but adopts a high-performance CPU and the new DTools software technology platform for programming the HMI, so as to support more rich picture components and functions of the new software. In addition, combined with the Kinco M-IoT technology platform it provides remote download, pass through PLC communication over the network, VNC remote monitoring, equipment management and other advanced remote operation and maintenance functions. This will provide more value for our users.

Features

M-IoT function
Performance Upgrade
Extended function
High speed pulse counter
High speed pulse output
Serial communication ports

M-IoT function

Built-in Internet of Things functions, support program upload and download, pass through PLC communication through network, VNC remote monitoring, equipment management and other rich remote operation and maintenance functions, easy to use and powerful, to facilitate the application needs of customers in various applications.

Expansion Unit

The HMI part adopts an industrial CPU, 700MHz main frequency, 128MB Flash + 64MB DDR2 large capacity storage and supports the new generation of touch screen DTools programming software, to further improve the performance of the product.

Faster calculation speed and more powerful functions

The PLC supports a rich variety of extension modules, it can be extended with a maximum of 8 KS extension modules. It can meet the needs of a variety of applications of users, with a better cost performance.

CAN bus interface

4 high speed pulse counters are provided. Each high-speed counter allows a maximum of 32 PV values and supports 32 "CV=PV" interrupts. High speed counter supports a variety of modes, it can be single-phase, dual-phase (Up/Down), AB phase (1-fold and 4-fold frequency).The maximum counting frequency of the four pulse counters is 50KHz. Users can use the HSC configuration wizard in the programming software to configure it directly.

High-speed pulse counter and high-speed pulse output

4 high-speed pulse outputs are provided, all support PTO (pulse string) and PWM (pulse width modulation) output signals.The software provides PLS (PWM or PTO), positioning control command group, PFLO_F (follow instruction) and other functions to facilitate users implementing simple motion control applications.

Compatible with K5 series PLC

The PLC part contains 2 RS485 interfaces, PORT1, PORT2, with communication rates of up to 115.2kbps. PORT1 supports Kinco programming protocols, Modbus RTU master and slave stations, and free serial protocol.PORT2 supports Modbus RTU master and slave stations and free serial protocol.

MODEL SPECIFICATION

PLC Specification

Name	Order No.	Supply Voltage	DI	DO	DIO	AI	AO	High Speed Counter	High Speed Output	Port	Extension Module	Dimensions (L×W×H)
HMI+PLC	MK070E-33DT	DC 24V	16	14 × DC24V	—	2 × IV	1 × IV	4 × Max 50KHz	4 (3 × Max 50KHz, 1 × Max 10KHz)	2 × RS485	Support KS expansion module	204 × 150 × 33.9
HMI+PLC	MK070E-32DX	DC 24V	16	4 × DC24V + 12 × Relay	—	—	—	2 × Max 50KHz	—	—	Support KS expansion module	204 × 150 × 33.9
HMI+PLC	MK043E-20DT	DC 24V	9	9 × DC24V	—	2 × AI	—	4 (3 × Max 50KHz, 1 × Max 10KHz)	—	—	—	132 × 102 × 31.5
HMI+PLC	MK043E-27DT	DC 24V	10	10 × DC24V	4	2 × IV	1 × IV	—	—	1 × RS232 (only for MK043E-27DT)	—	132 × 102 × 45.4

HMI Specification

Display	Color	Resolution	Backlight	Brightness	Touch Panel	Backlight Life	Memory	Recipe Memory	Expandable Memory	Program Download
7" TFT	256K Colors	800 × 480	LED	250 cd/m²	4-wire precision resistive network	50,000 hours	128M Flash + 64M DDR	256KB + RTC	Supported	1 USB Host / 1 USB Slave / Ethernet
4.3" TFT	—	480 × 272	LED	400 cd/m²	4-wire resistive	50,000 hours	—	—	—	1 × RS232 (MK043E-27DT only)

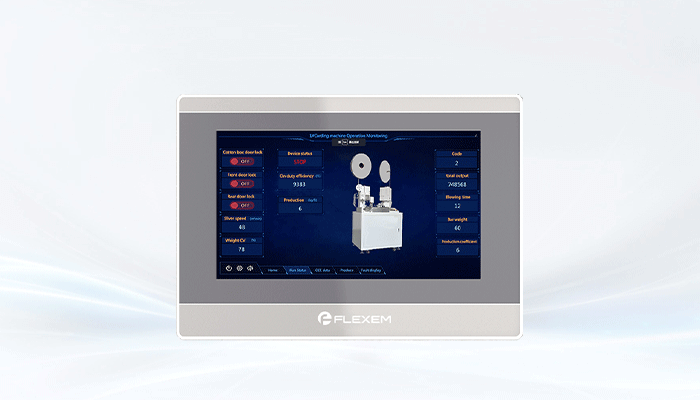

FE7070WE-32MR (NPN)

Cost-effective 7" HMI+PLC all-in-one...

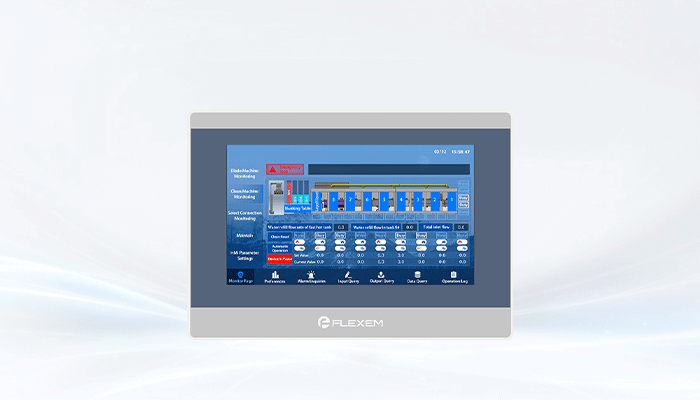

FE7070WE-32MRP (PNP)

Cost-effective 7" HMI+PLC all-in-one...

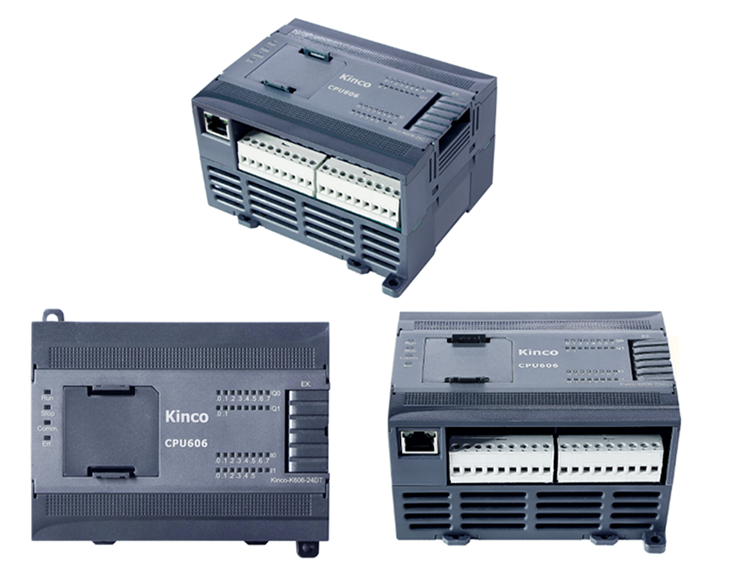

K6 Series PLC

Standard 10/100M Ethernet port, support TCP/UDP and other rich network protocols, up to 16 clients;
Support BD board, expand CAN bus or serial port, etc., more convenient and economical;
Standard multi-channel high-speed pulse input and output, can connect 14 expansion modules;
Using a new MCU platform, it has faster processing speed and supports rich software functions such as arrays and stacks.

SPECIFICATION

Kinco-K6 series PLC is a small PLC product. It is a high-performance standard PLC launched by Kinco. It adopts a brand-new technology platform. Under the premise of ensuring high performance and high reliability, it provides Ethernet, CAN bus, and expansion module. BD board and other functions that are closer to user needs, and have obvious advantages such as faster running speed, larger storage space, and significantly improved performance, which can meet the diverse needs of users.

Features

Ethernet
Expansion Unit
Faster calculation speed and more powerful functions
CAN bus interface
High-speed pulse counter and high-speed pulse output
Compatible with K5 series PLC

Ethernet

Standard 10/100M Ethernet port,support TCP Server,TCP Client,UDP and other communication protocols,support Modbus TCP Client/Server industrial bus protocol,easy to use and powerful,suitable for application requirements in more occasions.

Expansion Unit

Support expansion BD board and expansion module. The expansion modules are rich in types and have a large number of points. The K6 series CPU can connect up to 14 expansion modules to form a larger-scale control system. The expansion BD(Basic Unit Expansion Board) provides a small number of IO channels and communication ports, which can be directly plugged into the CPU module for use. Compared with the expansion module module, the BD board has fewer points but lower cost, which can further enrich the functions of the CPU module.

Faster calculation speed and more powerful functions

The scan cycle of 1000 common instructions is 0.3ms, which provides 8K instructions of program storage space and 20K bytes (V area + M area) of data storage space.Support the array function, support up to 16 arrays, each array allows up to 1024 elements (the elements can be any data type supported by KPLC). Users can use the array function to find the maximum value, minimum value, average value, sorting and other functions.Support stack function, support up to 2 stacks, each stack allows up to 1024 elements (element can be any data type supported by K6PLC). Users can use the stack function to achieve the corresponding requirements, and can also use the stack to further expand the data storage space.

CAN bus interface

K606 can add 1 CAN bus interface through BD board.The CAN interface supports the CANOpen master station function, allowing a maximum of 64 slave stations to be connected, and each slave station allows a maximum of 8 TPDO and 8 RPDO, and supports error control methods such as node protection and heartbeat.The CAN interface supports the Kinco motion control protocol and provides easy-to-use positioning control commands. Users can easily connect Kinco's servo and stepper drives through the CAN bus. The Kinco motion control protocol supports up to 16 nodes.

High-speed pulse counter and high-speed pulse output

K606 provides 4 high-speed pulse counters that support multiple modes of counting, the highest counting frequency of HSC0 and HSC1 is 200KHz, and the highest counting frequency of HSC2 and HSC3 is single-phase 6KHz and double-phase 2KHz.K606 provides 4 high-speed pulse output channels, the highest output frequency of channel 0-2 is 200KHz, and the highest output frequency of channel 3 is 10KHz. All channels support PTO (pulse train, pulse + direction) and PWM (pulse width modulation) output, and the software provides PLS (PWM or PTO), positioning control instruction group, PFLO_F (follow instruction),etc.

Compatible with K5 series PLC

K6 series PLCs are fully compatible with K5 functions: IO channels and power supply connections are completely consistent; K5 programs can be run directly; K5 series expansion modules can be directly connected.

MODEL SPECIFICATION

PLC Specification

Name	Order No.	Supply Voltage	DI	DO	AI	AO	BD Board	High Speed Counter	High Speed Output	Port	Expansion Module	Dimensions (L×W×H)
CPU606 Series
CPU606	K606-24DT	DC 24V	14	10 × DC24V	—	1	—	4	4	2 × RS485, 1 × Ethernet	—	128 × 114 × 76
CPU606	K606-24AT	AC 220V	14	10 × DC24V	—	1	—	4	4	2 × RS485, 1 × Ethernet	—	128 × 114 × 76
CPU606	K606-24DR	DC 24V	14	10 × Relay	—	—	—	4	4	2 × RS485, 1 × Ethernet	—	128 × 114 × 76
CPU606	K606-24AR	AC 220V	14	10 × Relay	—	—	—	4	4	2 × RS485, 1 × Ethernet	—	128 × 114 × 76
CPU608 Series
CPU608	K608-40DT	DC 24V	24	16 × DC24V	2	4	—	—	—	2 × RS485, 1 × Ethernet	—	186 × 114 × 76
CPU608	K608-40AT	AC 220V	24	16 × DC24V	2	4	—	—	—	2 × RS485, 1 × Ethernet	—	186 × 114 × 76
CPU608	K608-40DR	DC 24V	24	16 × Relay	2	4	—	—	—	2 × RS485, 1 × Ethernet	—	186 × 114 × 76
CPU608	K608-40AR	AC 220V	24	16 × Relay	2	4	—	—	—	2 × RS485, 1 × Ethernet	—	186 × 114 × 76
CPU606EA Series
CPU606EA	K606EA-30DT	DC 24V	14	10 × DC24V	4 × IV	2 × IV	—	—	—	2 × RS485, 1 × Ethernet	—	—
CPU606EA	K606EA-30AT	AC 220V	14	10 × DC24V	4 × IV	2 × IV	—	—	—	2 × RS485, 1 × Ethernet	—	—

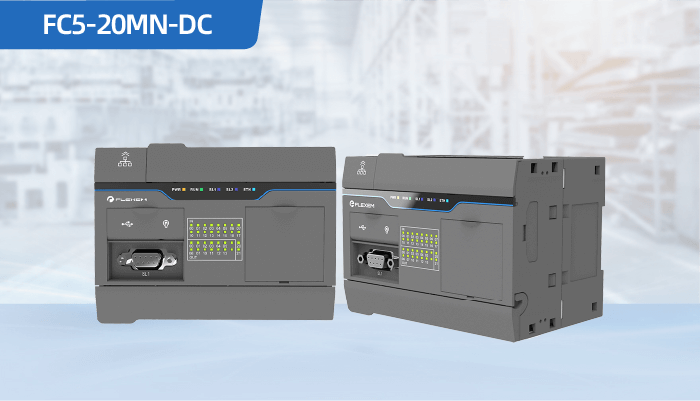

F5 series PLC

F5 series PLC is developed based on FS-unified, the proprietary platform of Flexem

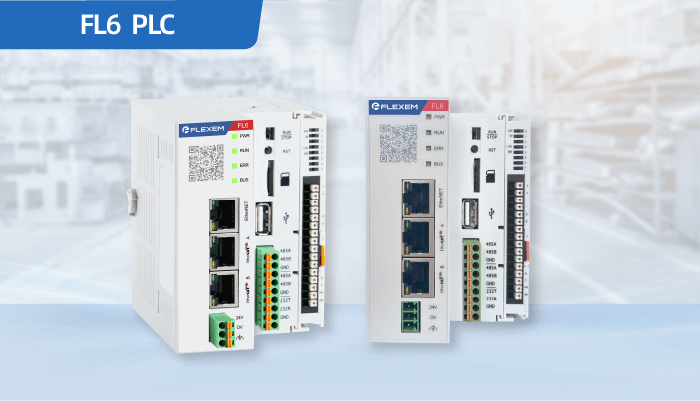

FL6 Series Codesys, Bus Control Type PLC

FL6 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture,

FL8 Series Codesys, Bus Control Type PLC

FL8 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture,

DVP-ES2 Series

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.

DVP-ES3 Series

Delta’s third generation DVP PLCs ES3 series employs the AS series PLC’s 32-bit high-speed processor,

DVP-SV2_M

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series.

AS Series Standard CPU

The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed

AX-3 Series Motion CPU

The AX-3 Series Motion CPU adapts the CODESYS platform and supports both motion and logic control applications.

M2-Series

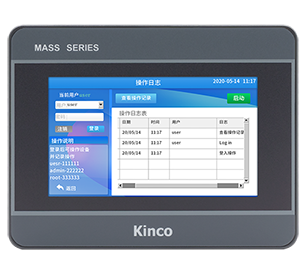

M2043HE

4.3” 800x480px, 16.7M, Serial port, Ethernet

M2070H / M2070HE / M2070HE-WIFI

7”, 1024×600, 16.77M Colors, USB Host, Serial, Ethernet

M2100 / M2100E / M2100E-WIFI

10.1”, 1024×600, 16.2M Colors, USB Host, Serial, Ethernet

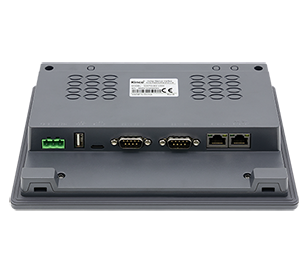

G2070HE/G2070HE2/G2070HE-WIFI

7", 1024*600, 16M Colors, USB Host, Serial port, Ethernet port

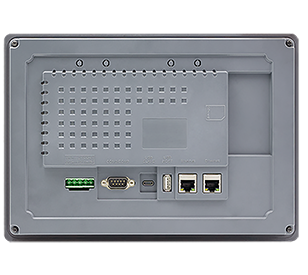

G2100E/G2100E2/G2100E-WIFI

10", 1024*600, 16M Colors, USB Host, Serial port, Ethernet port

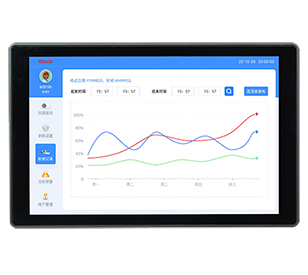

G2100HE-LX

10.1", 800*1280, 16M Colors, USB Host, Serial port, Ethernet port

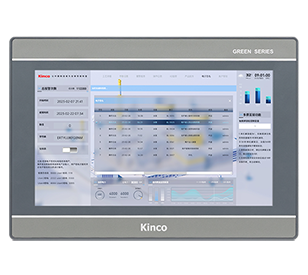

G2101E/G2101E2

10.1", 1024*600, 16.7M Colors, USB Host, Serial port, Ethernet port

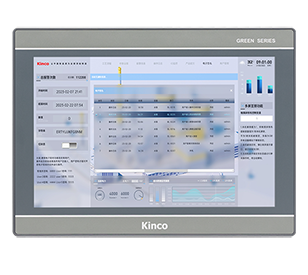

G2121E2

12.1", 1280*800, 16.7M Colors, USB Host, Serial port, Ethernet port

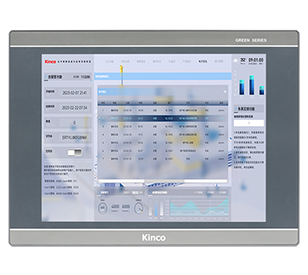

G2150E2

15", 1024*768, 16.7M Colors, USB Host, Serial port, Ethernet port

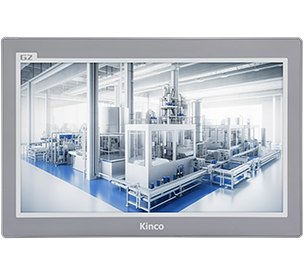

G2156E/G2156E-WiFi

15.6", 1920*1080, 16.7M Colors, USB Host, Serial port, Ethernet port

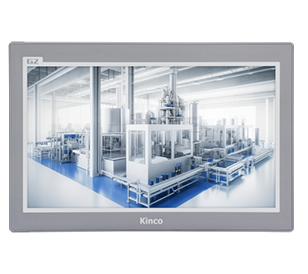

G2156E2

15.6", 1920*1080, 16.7M Colors, USB Host, Serial port, Ethernet port

GL150E

15" 1024×768, 65536 Colors, 1×Ethernet, 1×Micro USB / USB Host, 2×Serial port

GL100E

10.1" 1024×600, 16.7M Colors, 1×Ethernet, 1×Micro USB / USB Host, 2×Serial port
