Servo Series

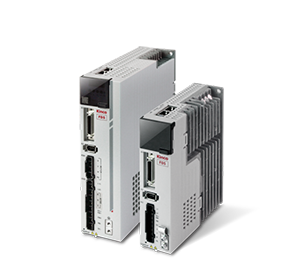

FD5 Series Servo Drives Kinco Motion Control
- FD5 Series support pulse control
- MODBUS、CANopen、 EtherCAT、Profinet
- EASY Tune optimization upgrade and online self-tuning availlable
FD5 Series Product Information
Model： FD425/435 FD625
Power range： 200W~2000W ，1500W~3000W
Supply voltage： 1PH&3PH, 200-240VAC，3PH 380-415VAC

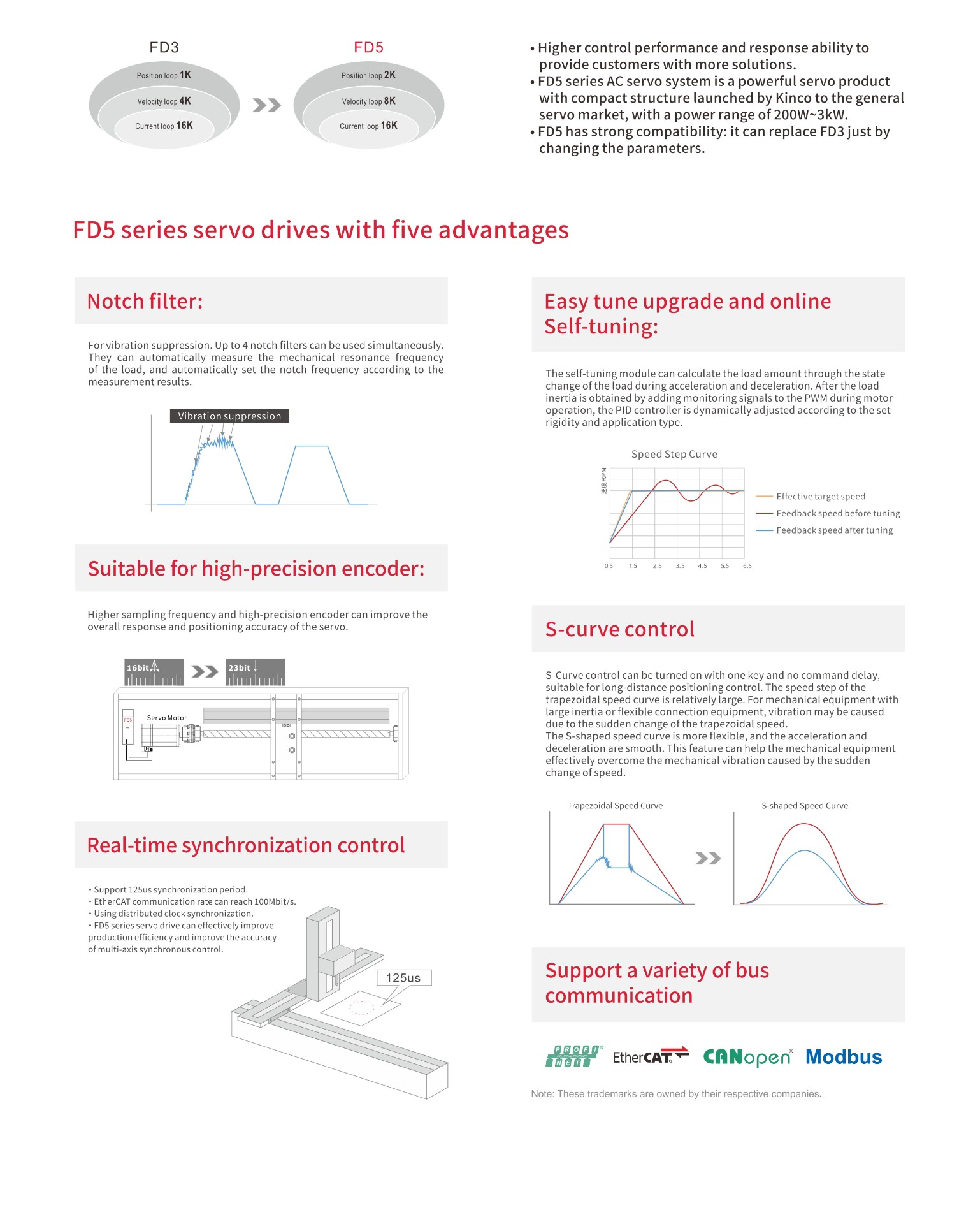

Main Features
- Pulse control；
- MODBUS, CANopen, EtherCAT, Profinet；
- Strong compatibility,compatible with 3 generations of product parameters, and parameters updatable for replacement.；
- Dynamic braking function control；
- EASY Tune optimization upgrade and online self-tuning available
- Equipped with the trap filter for vibration suppression.；
- S-curve control；
- High-precision encoder applicable
- Real-time synchronous control, which can effectively improve production efficiency and increase multi-axis synchronization control accuracy.
- IO includes 7 digital inputs, 5 digital outputs and encoder output function.
- Provide driver over-voltage and under-voltage protection, over-current protection, overheat protection, short-circuit protection, etc.
Applicable industries
- Robotics industry: SCARA robots, DELTA robots, six-joint robots, etc
- Packaging industry: slitting machine, pillow bag, vertical bag and other packaging machinery.
- Machine tool industry: engraving and milling machine, precision engraving machine, laser cutting, etc.
- Logistics industry: sub-building lines, vertical storage equipment, etc.
- Other occasions requiring high response speed and high positioning accuracy.
Drive List
Drive list
| Series | Model | Power (W) | Supply Voltage | Maximum Continuous Output Current (rms) (A) | Peak Current (A) | Control Mode |
|---|---|---|---|---|---|---|
| FD5 Series | FD425-LA-000 | 200 / 400 | AC220V | 3.9 | 18 | RS485 |
| FD425-CA-000 | 200 / 400 | AC220V | 3.9 | 18 | CANopen | |
| FD425-EA-000 | 200 / 400 | AC220V | 3.9 | 18 | EtherCAT | |
| FD425-PA-000 | 200 / 400 | AC220V | 3.9 | 18 | Profinet | |
| FD425-LF-000 | 750 / 1000 | AC220V | 5 | 18 | RS485 | |
| FD425-CF-000 | 750 / 1000 | AC220V | 5 | 18 | CANopen | |
| FD425-EF-000 | 750 / 1000 | AC220V | 5 | 18 | EtherCAT | |
| FD425-PF-000 | 750 / 1000 | AC220V | 5 | 18 | Profinet | |
| FD435-LA-000 | 1500 / 2000 | AC220V | 10 | 27.5 | RS485 | |
| FD435-CA-000 | 1500 / 2000 | AC220V | 10 | 27.5 | CANopen | |
| FD435-EA-000 | 1500 / 2000 | AC220V | 10 | 27.5 | EtherCAT | |
| FD435-PA-000 | 1500 / 2000 | AC220V | 10 | 27.5 | Profinet | |
| FD625-LA-000 | 1500 / 2000 / 3000 | AC380V | 7 | 25 | RS485 | |
| FD625-CA-000 | 1500 / 2000 / 3000 | AC380V | 7 | 25 | CANopen | |
| FD625-EA-000 | 1500 / 2000 / 3000 | AC380V | 7 | 25 | EtherCAT | |
| FD625-PA-000 | 1500 / 2000 / 3000 | AC380V | 7 | 25 | Profinet |
