FV3S Series Rotary-Type Servo

FLEXEM FV3S series general servo products, rotary type. 17/23bit multi-turn absolute motor, 500k pulse input, support EtherCAT, Modbus communication protocol, Type-C debugging, built-in 24V power supply, Bluetooth upload and download parameters.

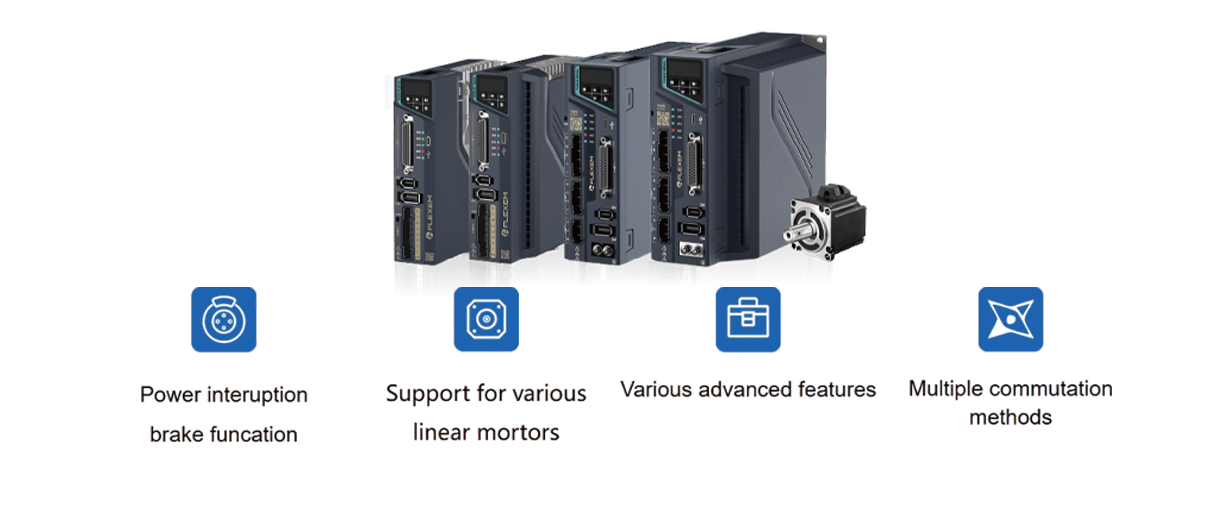

FV3S Servo Driver

Model A1R1 A1R6 A2R8 A5R5 A6R0
Continuous Out Current (Arms) 1.1 1.6 2.8 5.5 6.0
Maximum Output Current (Arms) 3.9 5.9 10.1 16.9 18.0
Rated Power (W) 100 200 400 750 1000
Minimum External Braking Resistor (Ω) 40 40 40 40 40
Installation Size SIZE-A SIZE-A SIZE-A SIZE-B SIZE-B
General Specifications
Input Voltage: Single-phase AC200V-240V, −10~10%, 50/60Hz
Debug Port: Type-C USB
RS485 Communication: 1 RS485 (limited to FV3S-R3 series P machine)
Encoder Differential Output: P Type support
Encoder Z-Phase Pulse OC Output: P Type support
Input Port: P Type (Pulse) 6 DI, N Type (EtherCAT Bus) 4 DI
Output Port: P Type (Pulse) 4 DO, N Type (EtherCAT Bus) 4 DO
Brake Function: External braking resistor
