F5 series PLC FS-Unified platform, Cost-effectiveness

F5 series PLC is developed based on FS-unified, the proprietary platform of Flexem, with IEC61131-3 architecture and PLCOPEN standard instruction set. It supports electronic cam, gear, interpolation and other motion control functions, has built-in Ethernet and serial port, object-oriented programming concept, and is extremely cost-effective.

Motion Controller

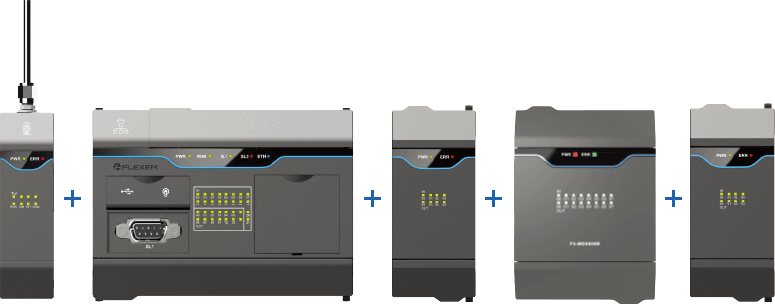

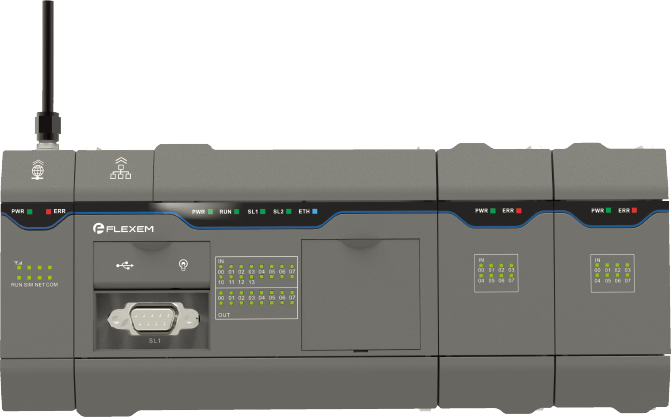

F5 series PLC can be connected to the cloud server through IoT module which is installed on the left side of CPU, to realize remote operation and maintenance,data monitoring function, etc. Provide a more professional and efficient solution for customers

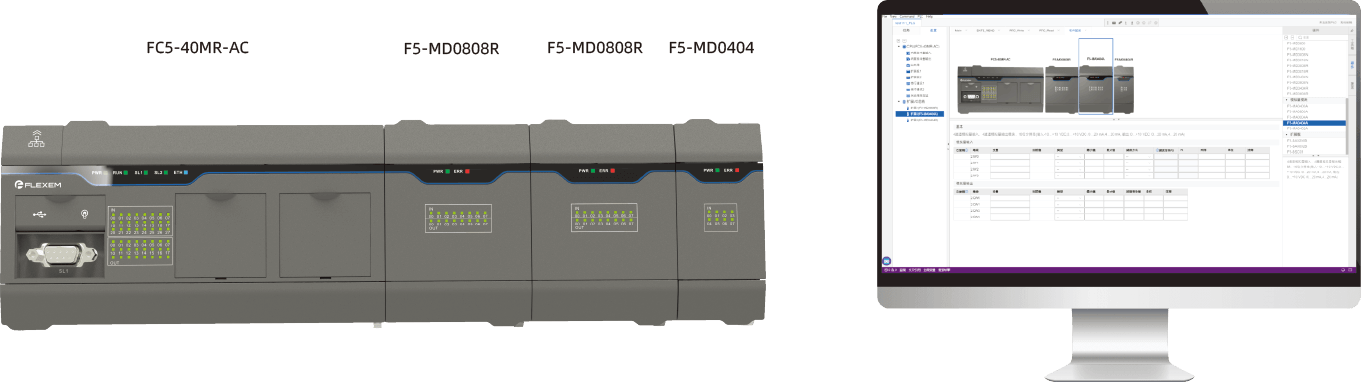

Graphical interface, more intuitive

FSU software provides graphical interface with more intuitive hardware configuration display, and facilitate to project settings for more efficient project development.

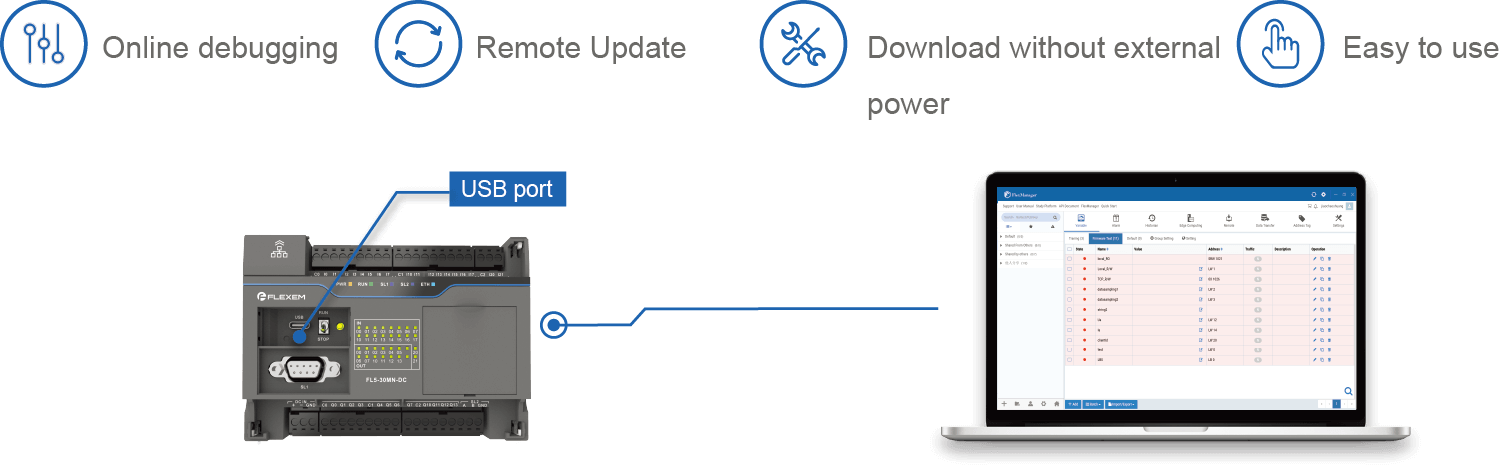

PLC project download without external power supply

If there is no external power supply for F5 series intelligent PLC, it also can download project with Type-C data cable used to connect the F5 PLC and the computer.

Support Modbus-RTU/TCP protocol

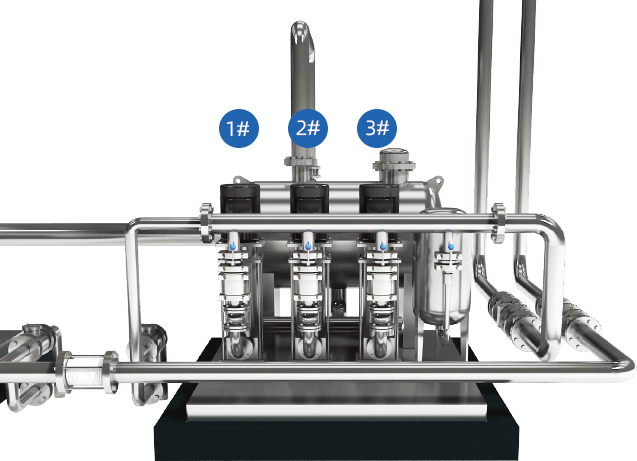

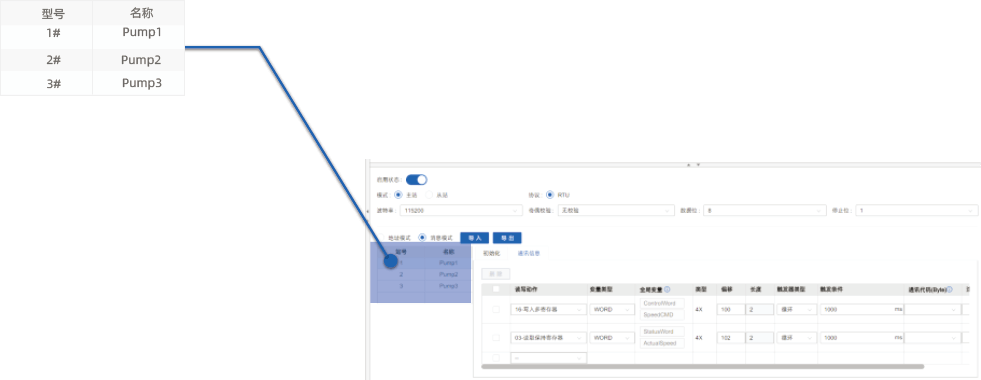

F5 series intelligent PLC supports Modbus-RTU/TCP protocol, easy to configure communication settings without any code.For same protocol but multiple slaves, it supports to copy one slave configuration to others for rapid project development.

Abundant models and various expansion modules

F5 series intelligent PLC has different power input methods, output types, abundant I/O points,and dozens of digital and analog expansion modules for customers to select.In addition, hidden expansion board provides more economic and convenient solution

Series	FC5			FC5M
Model	FC5-20M*	FC5-30M*	FC5-40M*	FC5M-20M*	FC5M-30M*	FC5M-40M*
Built-in I/O
Built-in I/O Points	20	30	40	20	30	40
Input Points	12	18	24	12	18	24
Output Points	8	12	16	8	12	16
High-Speed Pulse Input	None			7 Points — 100 kHz
High-Speed Pulse Output	None			6 Points — 100 kHz (Transistor only)
Expansion Ability
I/O Expansion Modules	Depends on CPU power supply (Max 31 modules)
Expansion Board	1	1	2	1	1	2
Modbus Communication	2 Channels (1×DB9 + 1×Terminal Block)
Communication & Ports
USB Type-C	Program download & upload, online monitoring, firmware upgrade
RS232 / RS485 Ports	Serial Port 1: RS485 / RS232 Serial Port 2: RS485 Baud Rate: 4800 – 115200 bps
Ethernet Port	1 × RJ45 — 10/100M — Self-adaptive
System
RTC (Real-Time Clock)	Built-in
