HMI Series

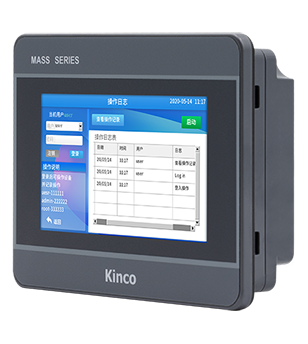

M2043HE Kinco HMI MASS Series 2
- 4.3", high definition and high brightness, display color of 16.7M.
- Main frequency 1GHz, 256MB storage and 128MB memory.
- Equipped with Kinco DTools configuration software, which is powerful and easy to use.
Product Information
Performance Specification
| Display size | 4.3" TFT |
|---|---|
| Display area | 95.04mm(W) × 53.86mm(H) |
| Resolution | 800×480px |
| Display color | 16.7M |
| Visual angle | 80/80/80/80 (left/right/up/down) |
| Contrast | 1200:01:00 |
| Backlight | LED |
| Luminance | 500cd/m² |
| LCD life | 30000 hours |
| Touch panel | 4-line precision resistance (surface hardness 4H) |
| CPU | ARM Cortex-A7 Dual Core 1GHz |
| Memory | 256MB Flash + 128MB Memory |
| RTC | Built-in |
| Extensible memory | None |
| Printer port | USB Host / Serial port |
| Ethernet | 10/100M self-adaption |
| Program download | USB Slave (Micro USB) / Serial port |
| Communication | COM0: RS232/RS485/RS422; COM2: RS232 |
Structure Specification
| Shape size | Engineering plastic 132mm × 102mm × 33mm |
|---|---|
| Cutout size | 119mm × 93mm |
| Weight | 0.21kg |
Environmental Specification
| Working temperature | 0 ~ 50℃ |
|---|---|
| Working humidity | 10~90% RH (non-condensing) |
| Storage temperature | -20 ~ 60℃ |
| Storage humidity | 10~90% RH (non-condensing) |
| Sine vibration test | 10~500Hz, 30m/s², X/Y/Z direction / hour |
| Cooling mode | Natural air cooling |
Electrical Specification
| Input range | DC10.8V ~ DC28V |
|---|---|
| Power | 2W @ DC24V |
| Allowable loss of power | < 3ms |
| Insulation resistance | Over 50MΩ @ 500V DC |
| Hi-pot test | 500V AC 1 minute |
Product Certification
| Panel protection grade | Conforming to IP65 certification (4208-93) |
|---|---|
| CE certification | EN IEC61000-6-4:2019, EN IEC61000-6-2:2019 |
Software
| Configuration software | Kinco DTools V4.1 and above |
|---|
