HMI Series

G2121E2

  • 12.1-inch 1280*800 high-definition display with 16 million true colors.
  • 85/85/85/85 wide viewing angle display
  • Quad-core CPU with 512MB memory and 4GB flash storage.
  • Double Ethernet port plus three serial ports, supporting dual RS485 applications.

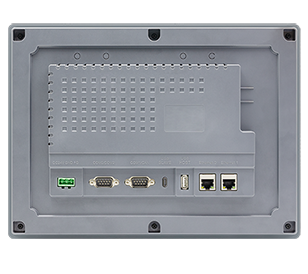

  • Rear cable exit design, cable plug and unplug without interference.
  • Based on the latest Kinco DToolsPro configuration software.

Product Information

Performance Specification
Display size 7" " TFT
Display area 261.12(H)×163.20(V)
Resolution 1280*800px
Display color 16.7M
Visual angle 85/85/85/85(L/R/U/D)
Contrast 1200:1
Backlight LED
Luminance 500cd/m²
LCD life ＞30000 hours
Touch panel 4 line precision resistance network（surface hardness 3H）
CPU Quad-core 1.5GHz
Memory 4GB Flash Memory+512MB Memory
RTC Built-in
External storage 1 USB Host
Printer port USB Host / Serial port
Ethernet LAN0:10/100 Mbps; LAN1:10/100 Mbps
Program download Ethernet port/USB Slave/U disk
Communication COM0:RS232/RS485/RS422;COM2:RS232;
Structure Specification
PCB None
Shell materialEngineering plastic
Shape size309*229*43mm
Cutout size299*219mm
Installation modeInstallation of Fasteners and VESA Mounting(VESA100*100mm)
Weight1.6KG
Environmental Specification
Working temperature 0~50℃
Working humidity 10~90%RH (non-condensing)
Storage temperature -20~60℃
Storage humidity 10~90% RH (non-condensing)
Sine vibration test 10~500Hz, 30m/s², X/Y/Z direction / hour
Cooling mode Natural air cooling
Electrical Specification
Input range DC18V～DC28V
Power 15W@DC24V
Allowable loss of power < 3ms
Insulation resistance Greater than 50MΩ@ 500V DC
Hi-pot test 500V AC 1 minute
Product Certification
Panel protection gradeConforming to IP65 certification (4208-93)
CE certificationEN IEC61000-6-4:2019, EN IEC61000-6-2:2019
Software
Configuration software Kinco DToolsPro
