FL8 Series Series Codesys, Bus Control Type PLC

FL8 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture, built-in high-speed EtherCAT motion control bus, built-in Ethernet and serial port, support for OPC UA and Modbus protocols, seamless connection to the upper control system, and optimization of the overall system.

Motion Controller - FL6 Seriesr

  • Compliant with IEC 61131-3 International Software Standard
  • Integrated control platform for PLC and motion control
  • EtherCAT high-speed motion control bus
  • Object-oriented programming
  • Built-in High-Speed IO, Integrated CANopen Communication

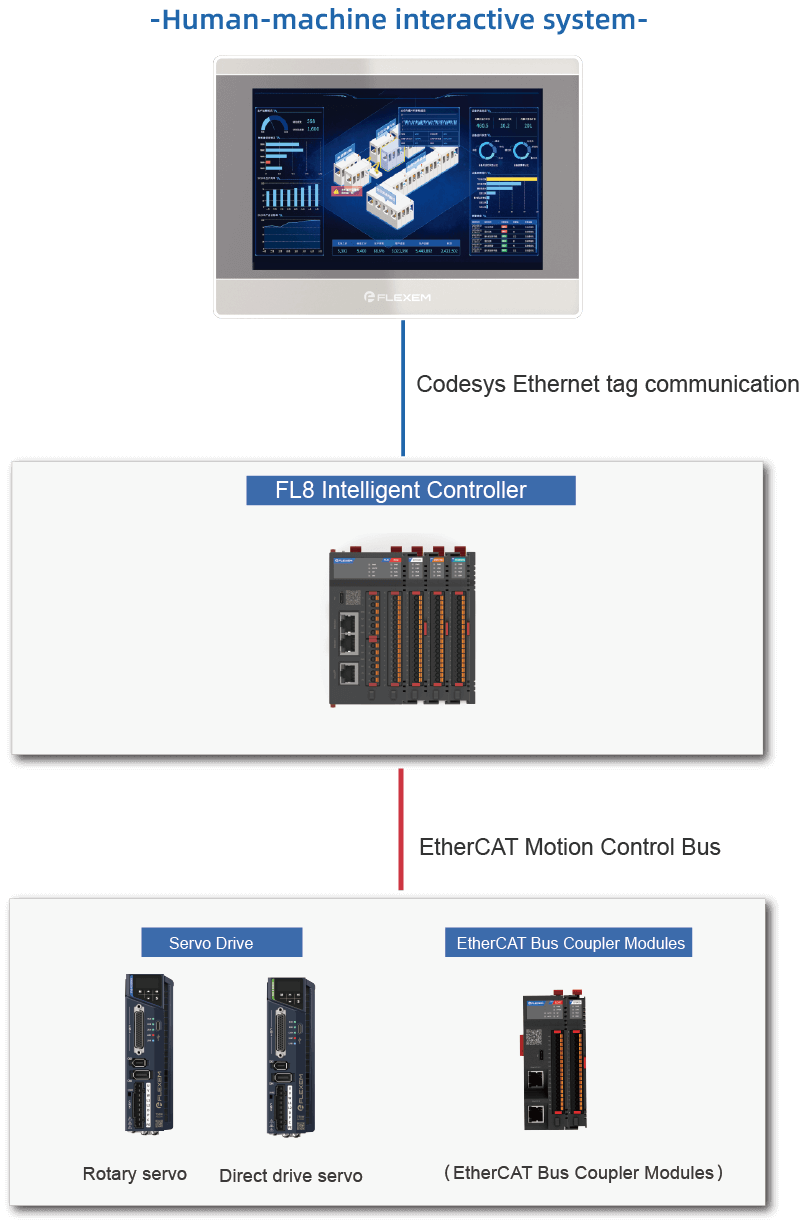

Distributed System Architecture

FL8 supports high-speed EtherCAT motion control bus, realizing precise motion control for complex machines; built-in CANopen field bus, conveniently linking with on-site slave devices; built-in Ethernet and serial ports support Modbus protocols, seamlessly linking with the upper control system and realizing the optimization of the overall system.

Model No. FL8-E8-D FL8-E16-D FL8-E32-D
CPU Quad-core — 1 GHz
RAM 1 GB 2 GB 2 GB
Hard Drive 4 GB 8 GB 8 GB
Axis / Motion Capability 8-axis EtherCAT + Pulse Axis 16-axis EtherCAT + Pulse Axis 32-axis EtherCAT + Pulse Axis
Pulse Axis 6-point — 200 kHz
Encoder Shafts 7-point — 200 kHz Pulse Input
Expansion Card (Left-side) Supports 4G Cat1 / Wi-Fi / Console Port
Communication
Ethernet 2 × 100M
EtherCAT Supported — EtherCAT Master × 1 (Up to 72 Slaves)
Serial Port Communication 2 × RS-485
CAN Communication 1 × CAN
Bus Protocols EtherCAT, Modbus-TCP, CANopen, Modbus-RTU, OPC UA*
Memory & Data
Program 32M
User Data 128M
Data Capacity Zone I: 128K
Zone Q: 128K
Zone M: 512K
Brown-out Holding: 800K
Other Variables: Unlimited
Other Interfaces USB Type-C — Program Upload/Download & Data Storage
Remarks Supports Electronic Cams & Electronic Gears
I/O & Expansion
Default I/O 8 Inputs (Source/Drain), 8 Outputs (NPN)
Expansion Module (Right-side) Up to 31 I/O Modules
Programming Languages IL, LD, ST, SFC, CFC, FBD
Power & Environment
Power Input DC 24V ± 20%
Clock Built-in RTC
