FV5-ESeries Direct-Drive Servo

Aiming at the field of precision manufacturing, with micron-level accuracy, suitable for 3C semiconductor industry, measurement industry, laser industry, etc. ABZ encoder, Tamagawa, BISS-C, Endat, Nikon and other communication encoders, DDR, DDL, voice coil and other motors. Support EtherCAT, Modbus communication protocols, standard dynamic braking function, standard encoder output.

FLEXEM FV5 Series Servo Product

Servo Driver

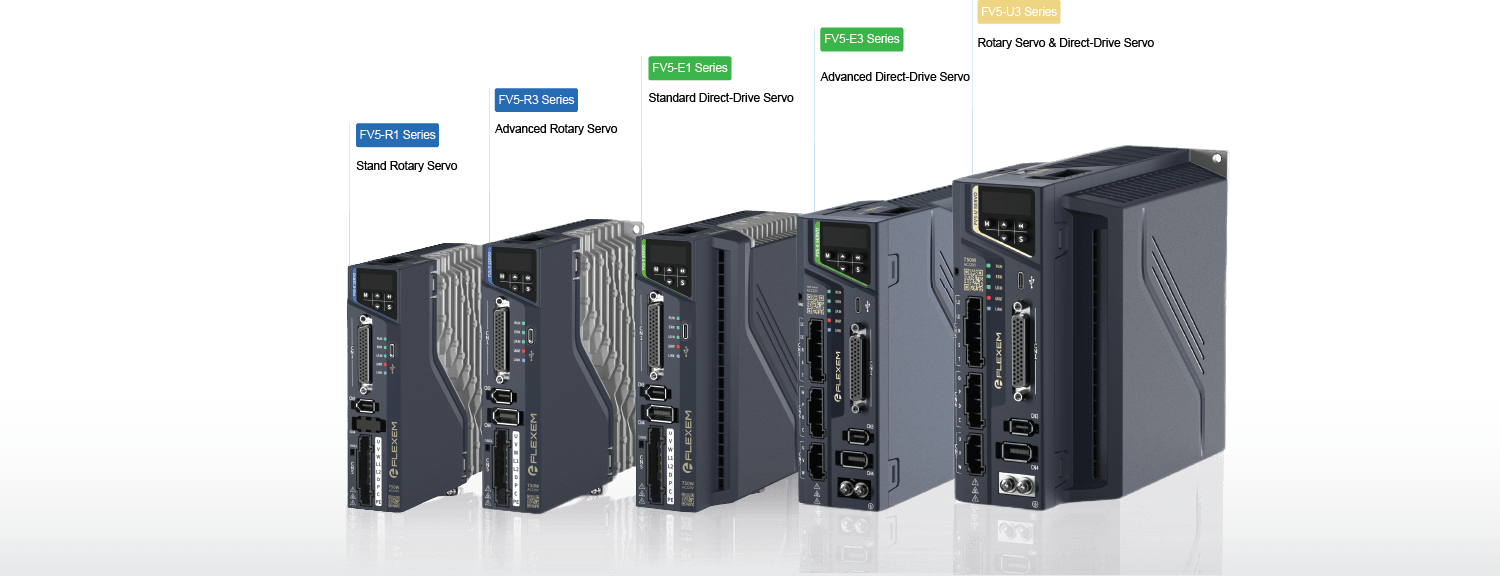

Support rotation, direct drive, full function and other series of products to meet the needs of customers.

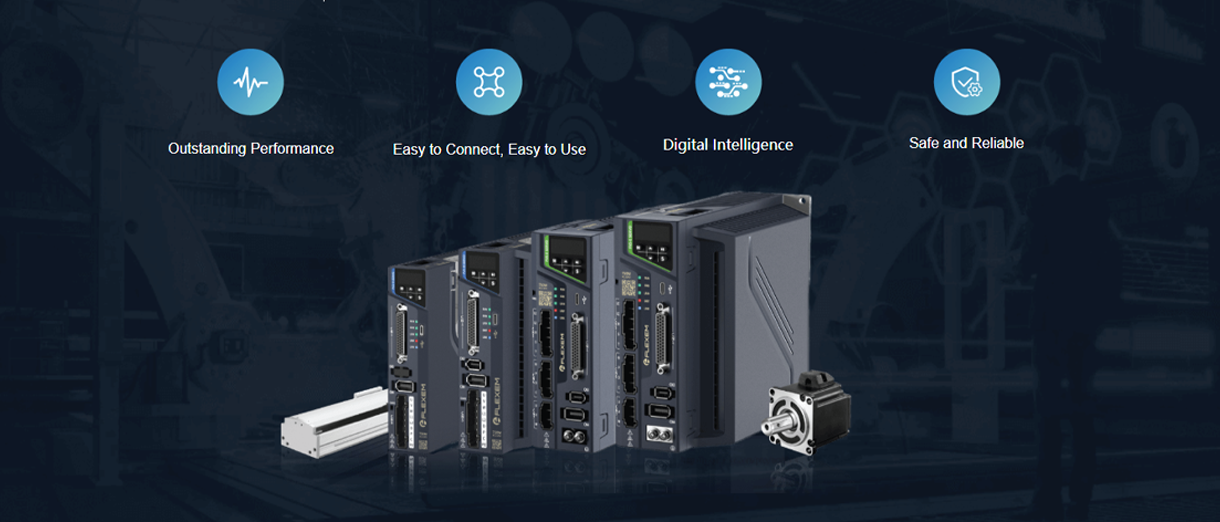

Outsatanding Performance

Strong performance with high response, high precision and high speed; Support model tracking, vibration suppression, adaptive filtering and other advanced algorithm functions, better adapt to multi-industry application scenarios.

Easy to Connect, Easy to Use

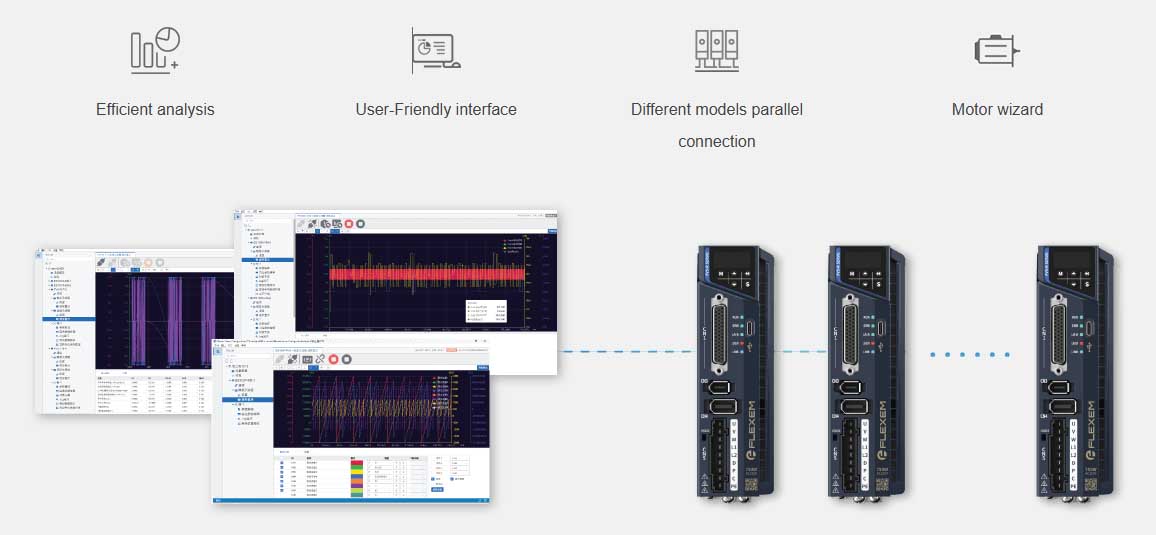

The Newly designed background software, supports multiple functions graphical interface for user-friendly intercation,marking it easier to use and providing better displays, allow multiple machines in parallel, more convenient debugging.

Digital Intelligence

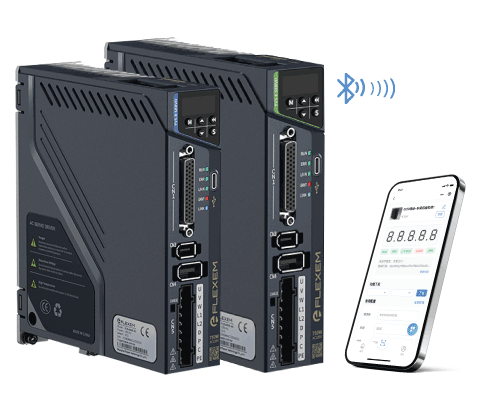

Support near field Bluetooth pairing, through the mobile side of the small program can achieve device status display, fault diagnosis, parameter delivery and product specification query and other functions.

Direct Drive Servo Products

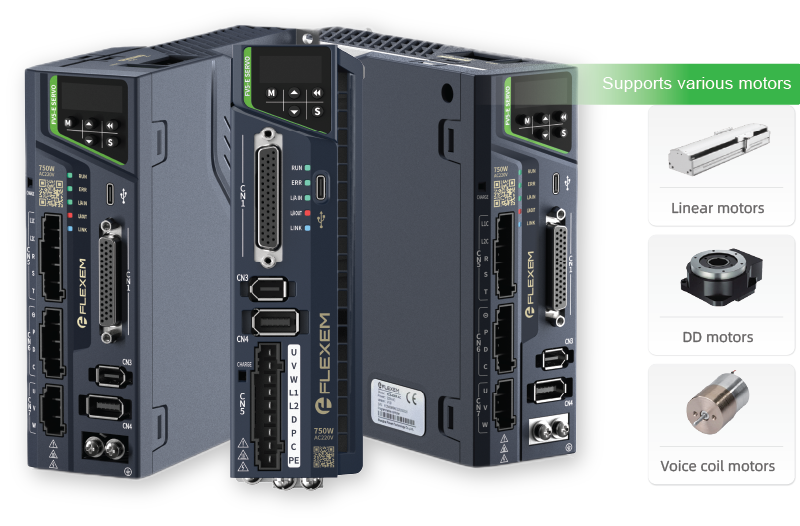

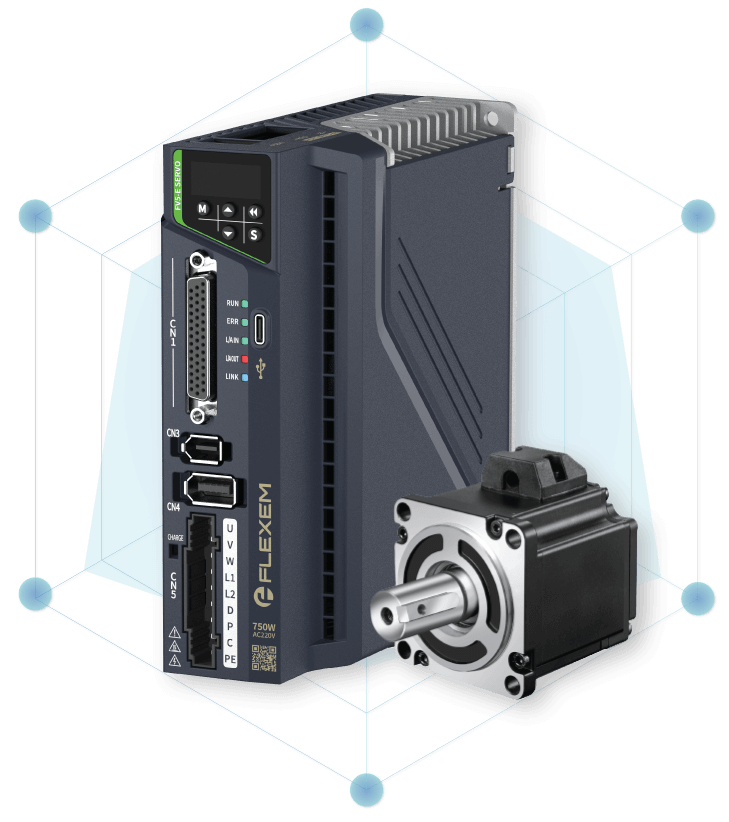

Advanced control algorithm, focus on direct drive motor applications, support a variety of encoder modes, including ABZ incremental encoder, UVW Hall sensor, Biss-C absolute encoder, EnDat absolute encoder, Tamagawa, Nikon communication encoder, etc.

FV5-E Series Drive Specifications

Drive Model FV5-E-口口口口-***	A3R0	A4R5	A6R0	A8R0	C010	C012	T6R0	T8R0	T010	T012	T017*	T021*	T026*
Rated Current (Arms)	3.0	4.5	6.0	8.0	10.0	12.0	6.0	8.0	10.0	12.0	17.0	21.0	26.0
Maximum Output Current (Arms)	10.0	13.5	18.0	23.0	27.0	32.0	15.0	20.0	21.0	30.0	42.5	52.5	65.0
Input Power Supply	Single-phase AC220V, −10%~10%, 50/60Hz						Three-phase AC220V, −10%~10%, 50/60Hz				Three-phase AC380V, −10%~10%, 50/60Hz
Rated Power — Single Phase (W)	400	600	800	850	980	1150	—	—	—	—	—	—	—
Rated Power — Three Phase (W)	—	—	—	1200	1400	1600	1500	2000	2500	3000	5000	6000	7500
Brake Function	External braking resistor						Built-in braking resistor
Built-in Braking Resistor Resistance (Ω)	—	—	50	25	25	25	100	50	50	50	50	50	50
Built-in Braking Resistor Capacity (W)	—	—	50	80	80	80	80	80	80	80	80	80	80
Minimum External Braking Resistor (Ω)	40	40	40	20	15	15	60	45	40	40	35	25	25
Installation Size	SIZE-A	SIZE-A	SIZE-B	SIZE-C	SIZE-D	SIZE-D	SIZE-C	SIZE-D	SIZE-D	SIZE-D	SIZE-E	SIZE-E	SIZE-E

General Functional Specifications

Background Communication: Type-C USB

EtherCAT Communication: FV5-E*-N***** models support

RS485 Communication: FV5-E*-P***** models support

Encoder Interface:
CN3 — E1: Hall sensors, E3: SSI encoders (Biss-C / EnDat)
CN4 — Full range ABZ incremental encoder + motor temperature sensor

IO Specification:
AI — 1 channel (P-type models)
Digital Input — 8 channels (P-type) / 5 channels (N-type)
High-speed DI — Not supported
Digital Output — 5 channels (P-type) / 4 channels (N-type)
High-speed DO — Not supported

Pulse Input:
Low-speed (collector) — 200 kpps (P-type)
High-speed (differential) — 4 Mpps (P-type)

STO: Not supported

Encoder Differential Output: Full range support

Z-phase Pulse OC Output: Full range support

Dynamic Braking: Full range support

Motor Temperature Protection: Full range support
