HMI Series

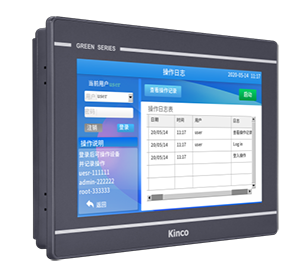

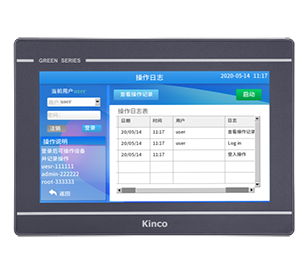

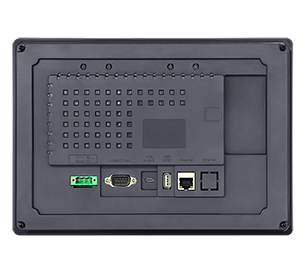

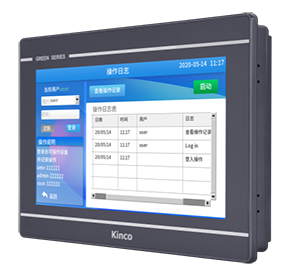

GL100EKinco HMI GREEN Series
- Preferred model for 10 inch screen in general application
- Non hollowing mask is more effective for oily environment.
- Beautiful appearance, ultra-thin body
- Super cost performance
Product Information
Performance Specification
| Display size | 10.1" " TFT |
|---|---|
| Display area | 227.72(W)×125.28(H) |
| Resolution | 1024×600 px |
| Display color | 16.77M true color |
| Visual angle | 70/70/60/70(L/R/U/D) |
| Contrast | 500:1 |
| Backlight | LED |
| Luminance | 400cd/m² |
| LCD life | ＞30000 hours |
| Touch panel | 4-wire precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 800MHz |
| Memory | 256MB Flash Memory+ 128MB Memory |
| RTC | Built-in |
| External storage | 1 USB Host |
| Printer port | USB Host / Serial port |
| Ethernet | LAN0:10/100 Mbps; LAN1:10/100 Mbps |
| Program download | USB Slave(Type-C)/U disk/Ethernet port |
| Communication | COM0:RS232/RS485/RS422;COM2:RS232; |
Structure Specification
| Shell material | Engineering plastic |
|---|---|
| Shape size | 271×191×36 (mm) |
| Cutout size | 260×180 (mm) |
| Weight | 0.9KG |
Environmental Specification
| Working temperature | 0~50℃ |
|---|---|
| Working humidity | 10~90%RH (non-condensing) |
| Storage temperature | -20~60℃ |
| Storage humidity | 10~90% RH (non-condensing) |
| Sine vibration test | 10~500Hz, 30m/s², X/Y/Z direction / hour |
| Cooling mode | Natural air cooling |
Electrical Specification
| Input range | DC10V~DC28V，inbuilt isolated power supply |
|---|---|
| Power | 6W@DC24V |
| Allowable loss of power | < 3ms |
| Insulation resistance | Greater than 50MΩ@ 500V DC |
| Hi-pot test | 500V AC 1 minute |
Product Certification
| Panel protection grade | Conforming to IP65 certification (4208-93) |
|---|---|
| CE certification | EN IEC61000-6-4:2019, EN IEC61000-6-2:2019 |
Software
| Configuration software | Kinco DTools V4.1 and above version |
|---|
