FL6 Series Codesys, Bus Control Type PLC

FL6 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture, supporting multiple fieldbuses, and synchronous motion control such as CAM and CNC; rich network interfaces can meet various application requirements.

Motion Controller - FL6 Seriesr

  • Compliant with lEC 61131-3 International Software Standard
  • Integrated control platform for PLC and motion control
  • EtherCAT high-speed motion control bus
  • Object-oriented programming
  • Built-in High-Speed lO, Integrated CANopen Communication

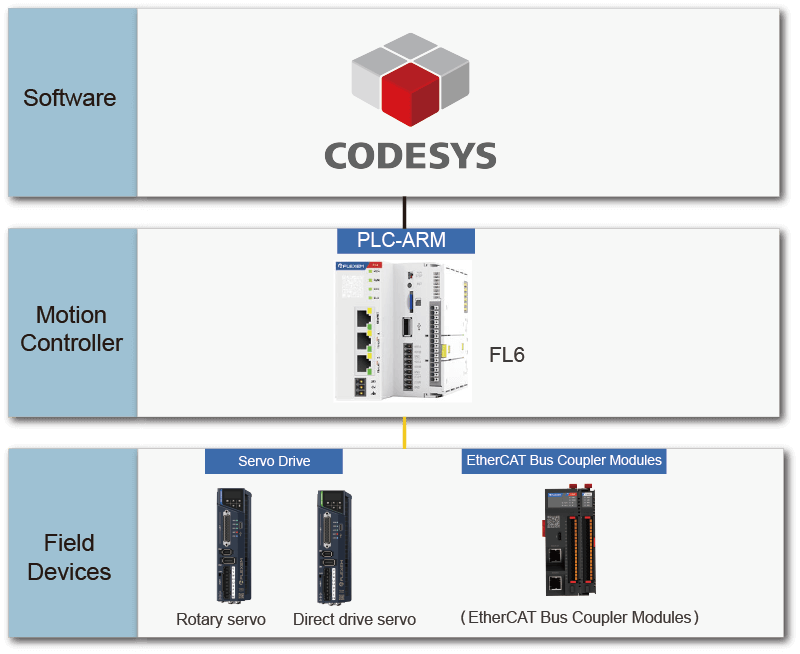

Distributed System Architecture

Item FL6-E16-D FL6-E32-D FL6-E64-D
Power Supply DC 24V (-25% ~ +20%)
CPU Specification 4-core — 1.5 GHz
Memory Capacity 2G
Hard Disk Capacity 8G
Program Capacity 32MB
User Data Storage Capacity 128MB
Power Interruption Storage Capacity 3MB
USB USB 2.0 × 1
Network Card 1 × Gigabit Port
2 × 100-Megabit Ports
Serial Port 2 × RS-485 ; 1 × RS-232
Dimensions 78mm × 98mm × 100mm
Power Supports 24V DC Adapter Power Supply
Working Temperature -20℃ ~ 60℃
Axis Capability 16-axis 32-axis 64-axis
