HMI Series

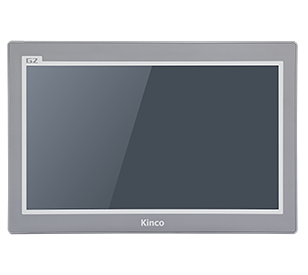

G2156E/G2156E-WiFi Kinco HMI GREEN Series

  • 15.6" display with 1920*1080 resolution and 16 million true colors;
  • Single Ethernet port and dual serial port design, reliable communication;
  • Quad-core CPU with 512MB RAM and 4GB flash storage, ultimate performance;
  • Metal shell with power isolation, safe and reliable;

Product Information

Performance Specification
Display size 15.6" " TFT
Display area 344.16mm(W)x193.59mm(H)
Resolution 1920*1080px
Display color 16.7M
Visual angle 80/80/80/80(L/R/U/D)
Contrast 1000:1
Backlight LED
Luminance 250cd/m²
LCD life ＞20000 hours
Touch panel 4 line precision resistance network（surface hardness 3H）
CPU Quad-core 1.5GHz
Memory 4GB Flash Memory+512MB Memory
RTC Built-in (512KB)
External storage 1 USB Host
Printer port USB Host / Serial port
Ethernet LAN0:10/100 Mbps; LAN1:10/100 Mbps
Program download Ethernet port/USB Slave/U disk
Communication COM0:RS232/RS485/RS422;COM2:RS232;
Structure Specification
PCB Built-in
Shell materialMetal
Shape size395*259*25.5mm
Cutout size381.5*245.5mm
Installation modeInstallation of Fasteners and VESA Mounting(VESA100*100mm)
Weight2.5KG
Environmental Specification
Working temperature 0~50℃
Working humidity 10~90%RH (non-condensing)
Storage temperature -20~60℃
Storage humidity 10~90% RH (non-condensing)
Sine vibration test 10~500Hz, 30m/s², X/Y/Z direction / hour
Cooling mode Natural air cooling
Electrical Specification
Input range DC18V～DC28V,built-in isolated power supply
Power 15W@DC24V
Allowable loss of power < 3ms
Insulation resistance Greater than 50MΩ@ 500V DC
Hi-pot test 500V AC 1 minute
Product Certification
Panel protection gradeConforming to IP65 certification (4208-93)
CE certificationEN IEC61000-6-4:2019, EN IEC61000-6-2:2019
Software
Configuration software Kinco DToolsPro
