Delta VFD Series

C2000-HS Series

High-speed centrifugation is widely applied to fluid-mechanical devices to increase efficiency and save both time and equipment cost. During operation, a fluid-mechanical device rotates at high speed to gain a faster flow rate, and the frequency increases as the motor rotation speed increases.

With years of experience in motor drive and control, Delta introduces the High Frequency Motor Drive C2000-HS Series with outstanding performance (output frequency up to 1,500 Hz) and energy-efficient features to fulfill the demand for high speed motor control. The C2000-HS Series is an excellent choice for your fluid mechanical devices.

Product Details

Features

  • High-speed operation: Enhanced performance and control with max. operating frequency up to 1,500 Hz
  • Direct drive mechanism: Reduced system size, higher efficiency and lower cost
  • Compact design: No need to adopt a drive of higher power range when matching with a high-capacity motor. Reduces installation space
  • Sensorless motor control technology: Built-in motor ID parameters for sensorless control with steadier output speed and optimized dynamic response. With FOC sensorless control, the speed control precision reaches 1:100
  • New IGBT technology: Maintains high motor drive efficiency of up to 98% while running at a high carrier frequency. Substantially reduces the derating limit of the output current
  • Built-in DC reactor: Suppresses high harmonics and compliant with EN61000-3-12

Applications

  • HVAC Systems - Chiller Units
  • Sewage Treatment Plants - Centrifugal Turbo Blowers
  • Power Plants - Micro Gas Turbine Generators

Product Specifications

  • uilt-in PLC program with 5,000 steps capacity
  • Modbus RS-485 and CANopen (Slave)
  • Built-in brake chopper
  • The high-brightness LED keypad shares the same extension cable of the VFD-E/M/B Series to maximize operation distance
  • Supports open loop control of permanent motors (PM Sensorless)
  • Two high speed pulse input terminals MI7 and MI8 built-in with maximum speed up to 33kHz
  • Two high speed pulse output terminals DFM1 and DFM2 built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • C200 Series Frame A supports wall mounted installation

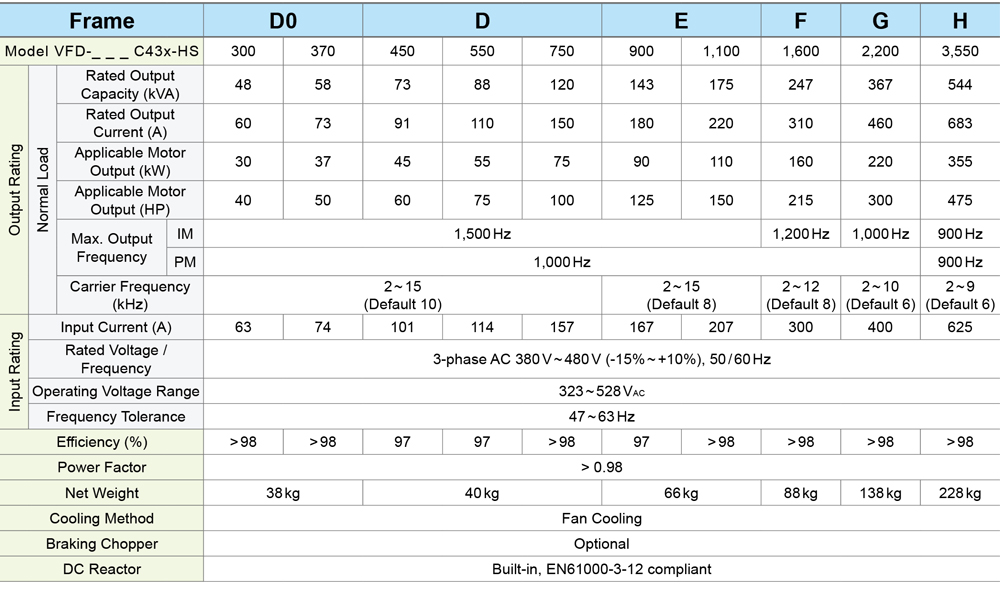

Power range
