Servo Series

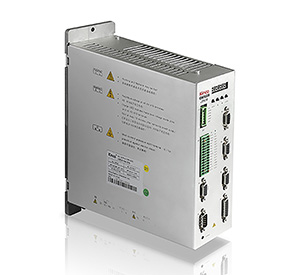

JD Series AC Servo Driver Kinco Motion Control
- European servo system terminal design, no need for welding, easy connection.
- MODBUS CANopen communication protocol is supported.
- Support master-slave following, multi-axis synchronization.
- Full closed loop control.
SPECIFICATION
Model: JD430/620/630/640/650
Power range: 200W~7.5kW
Power supply voltage: Single phase/three phase 200~240VAC, three phase 380~415VAC
Main Features
- European servo system terminal design, no need for welding, easy connection.
- MODBUS CANopen communication protocol is supported.
- Support master-slave following, multi-axis synchronization.
- Full closed loop control.
- Full open servo parameter setting system, free configuration of servo driver function.
- Mechanical vibration suppression.
- SIL3/Cat.3/PLGrade safety function (safety torque off).
- The product design conforms to UL standard and some products have passed UL certification.
- The series of products have passed CE certification, and conform with ROHS environmental certification standards.
Applicable industries
- Robotics: SCARA robots, DELTA robots, six-joints robots and etc.
- Package: slitting machine, pillow machine, vertical package manchine and etc.
- Machine tool: CNC engraving and milling machine, laser cutting and etc.
- Logistics: Sorting machine, tridimensional warehouse device and etc.
- Medical machine: CT, MRI medical bed control and etc.
- Other occasions: High response speed and high positioning precision.
Drive List
Driver Models and Specifications
| Series | Model | Power (W) | Power Supply Voltage | Max Continuous Output Current (rms) (A) | Peak Current (A) | Control Mode |
|---|---|---|---|---|---|---|
| JD Series | JD430-AA-000 | 200 ~ 2000 | AC220V | 10 | 27.5 | CANopen |
| JD620-AA-000 | 1005 ~ 3000 | AC380V | 7 | 25 | CANopen | |
| JD630-AA-000 | 3000 ~ 3800 | AC380V | 10 | 35 | CANopen | |
| JD630-LA-000 | 3000 ~ 3800 | AC380V | 10 | 35 | RS485 | |
| JD640-AA-000 | 4400 / 5500 | AC380V | 13 | 45 | CANopen | |
| JD640-LA-000 | 4400 / 5500 | AC380V | 13 | 45 | RS485 | |
| JD640-AR-000 | 5500 | AC380V | 13 | 45 | CANopen | |
| JD650-AA-000 | 7500 | AC380V | 18 | 65 | CANopen | |
| JD650-AR-000 | 7500 | AC380V | 18 | 65 | CANopen |
