Apex Brand

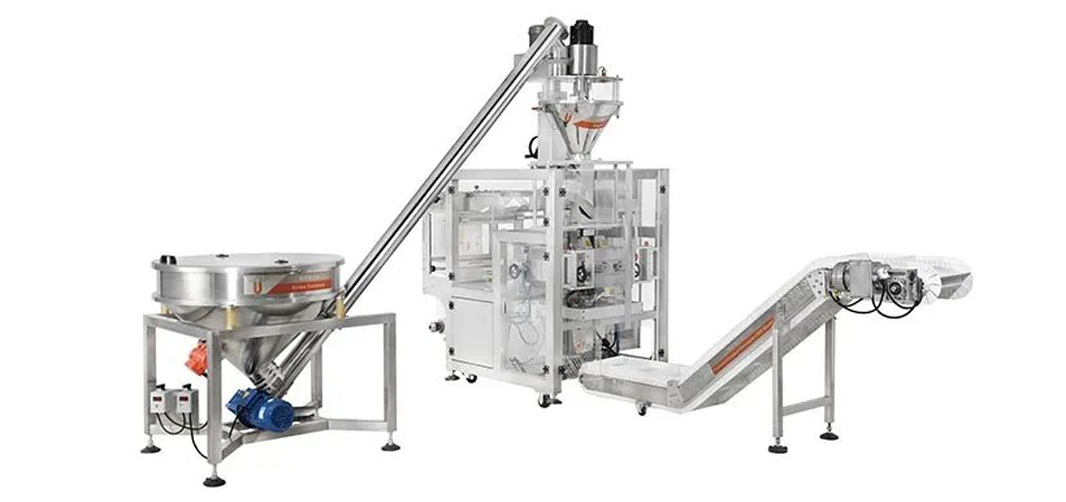

Fully Automatic Auger Filler Machine
In auger filler machine, the material to be filled is stored in the hopper. The stirrer prevents bridging of material and the servo motor drive provides excellent accuracy and high-speed filling performance.
This machine is suitable for packing:
- Wheat Flour (Atta)
- Rice Flour
- Besan
- Spices
- Chilli Powder
- Turmeric Powder
- Coffee Powder
- Curry Powder
- Chemical Powder
- Bleaching Powder
Technical Specification of Machine
| Product Characteristics | |
|---|---|
| Product Form | Powder |
| Hopper Capacity | 30kg |
| Weighing Range | 100g to 1kg* |
| Output | 30–50 kg/minute |
| Film & Material | |
| Type of Film | Heat sealable laminated plastic |
| Material Construction | SS304 contact parts & MS body |
| Power & Air Requirements | |
| Input Power Supply | 3 Phase, 415 VAC |
| Air Supply | 2 HP, 6 Bar Compressor |
| Dimensions | |
| Drive & Mechanism | |
| Film Draw | Servo / VFD |
| Horizontal Sealing | Pneumatic |
| Vertical Sealing | Pneumatic |
| Auger Drive | Servo Drive |
| Hopper Capacity | 30 kg |
Features:
- Maintenance-free 24×7 operation
- PLC Control Machine
- HMI for user friendly interfacing
- Servo-based feeding for high speed & accuracy
- Eye-mark controller for precise sealing
- Provision for batch printing system
- Roll change system (optional)
- Pouch counter — batch / day wise
- Optional servo horizontal sealer
- Collar type forming system
- Leak-proof sealing method
- Level controller for screw conveyor
- Durable timing belt film pulling
- Steblizer 12KVA (optional)
- Strip-cut / single-cut system
