FE7070WE-32MR (NPN) 7" HMI, NPN output

FE7070WE-32MR is a cost-effective HMI+PLC all-in-one solution. It has 7" resistive touch screen, and 16I+16O (8*NPN + 8*Relay) PLC. The cutout size is 7 inch with high density, and space-saving features. Main-board conformal coating, adapting to various harsh environments. User-friendly configuration software, easy to use. Easy to install.

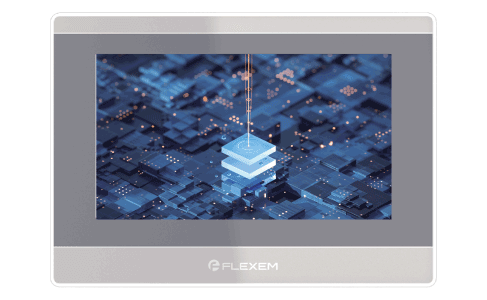

FE7300 Series

Resistive HMI

High-Performance

The 7300 series HMI features a high-definition, high-light, full-view screen, a selection of high-performance cpus, and large-capacity storage for overall performance improvement

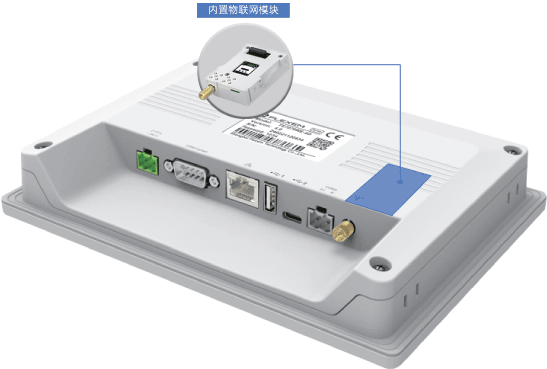

IoT Model

Built-in iot module, no need to plug Flink module can use iot engineering, to ensure seamless connection and data exchange between devices.

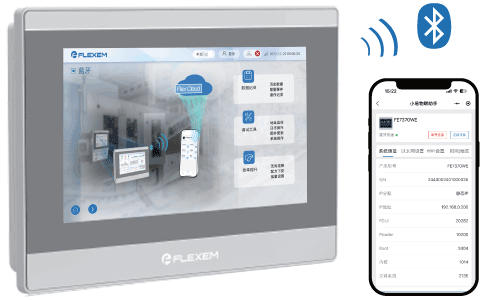

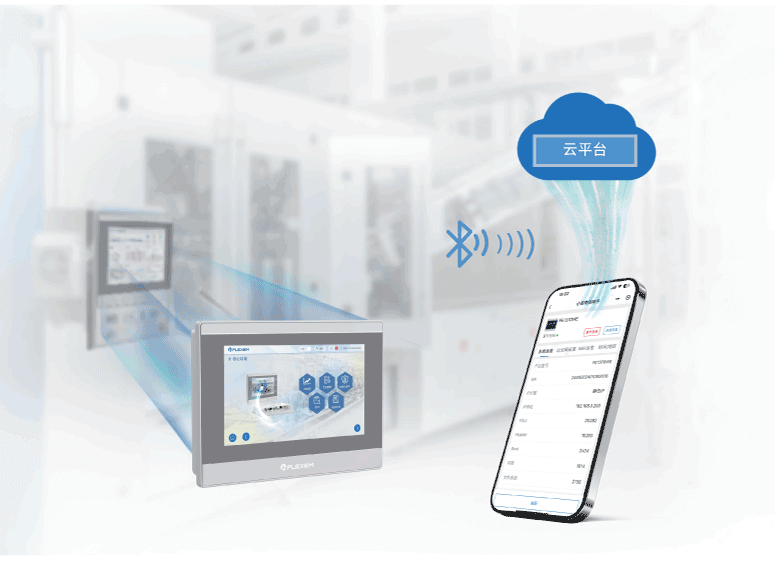

Bluetooth Connection

Add Bluetooth module for easy wireless connection.With the mobile phone applet, you can perform data read and write, system Settings, log export, firmware upgrade and other operations

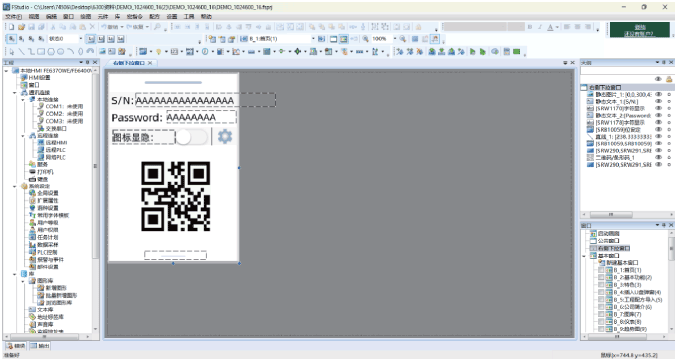

Software Upgrade

In FStudio configuration software, users can freely configure the priority of Internet access, new right drop-down window interaction mode, users can customize the content of the window.

FEATURES FE7070WE-32MR
Human-Machine Interface Display
Display7" 16:9 TFT LCD
Resolution1024×600
Colors24-bit
Brightness350 cd/m²
BacklightLED
LCD Lifetime50000 hours
Touch Panel4-wire industrial resistive touch panel
CPUCortex-A7 (1GHz, dual-core)
Storage128MB DDR3 + 4GB EMMC
RTCBuilt-in
Ethernet1 × RJ45, 10M/100M self-adaptive
USB Port1 × USB Type-C 2.0; 1 × USB Type-A 2.0
Serial Port1 × RS485 (COM1), signal isolation
Program DownloadUSB / USB Slave / Ethernet
Viewing Angles (T/B/L/R)85° / 85° / 85° / 85°
Configuration SoftwareFStudio
Corresponding HMIFE7070WE
Programmable Logic Controller
CPUARM 32-bit Cortex-M3
Digital Input16-channel input
Digital Output8-channel Transistor (NPN) + 8-channel Relay output
Analog Input4 channels, 4-20mA / 0-10V, 16-bit, isolated
Analog Output2 channels, 4-20mA / 0-10V, 12-bit, isolated
PT1004 channels, three-wire PT100, isolated
User Program Memory150K Bytes
Retentive Memory4K Bytes
Timer Total: 256
100ms: 206 (0.1–3276.7s)
10ms: 46 (0.01–327.67s)
1ms: 4 (0.001–32.767s)
Counter235
High-Speed InterruptRising & falling edge on X0~X4, 3 timer interrupts
Execution ModeCyclic Scanning
Processing Speed General Instructions: 0.1µs
Functional Instructions: ON 5µs / OFF 0.5µs
Programming LanguageLadder Diagram & Standard C
Serial Communication 1 × RS485 (PORT1)
Supports Mitsubishi FX2N & Modbus RTU
Signal isolated
Programming PortUSB
Programming SoftwareFlexLogic
PLC ModelFL3-32MR-DC
Electrical & Environmental
Rated Power< 10W
Rated VoltageDC 24V (18-30V)
Power Protection Isolated power supply module, lightning surge protection
Power Interruption< 5ms
Certifications EN61000-6-2:2019 / EN61000-6-4:2019
RoHS Certified
Surge ±1kV, Group pulse ±2kV
ESD: 4kV (contact) / 8kV (air)
Operating Temperature0~50℃
Storage Temperature-20~60℃
Humidity10%~90% RH (non-condensing)
UV ResistanceDirect high-UV exposure prohibited
Vibration10~25Hz, 2G, 30min (XYZ)
CoolingNatural air cooling
Protection Level Front: IP65 (flush mount) — Rear: IP20
Conformal CoatingMainboard coating & glue dispensing
Enclosure MaterialEngineering Plastics
Cutout Dimensions190mm × 136mm
Dimensions204mm × 145mm × 48mm
WeightAbout 750g
