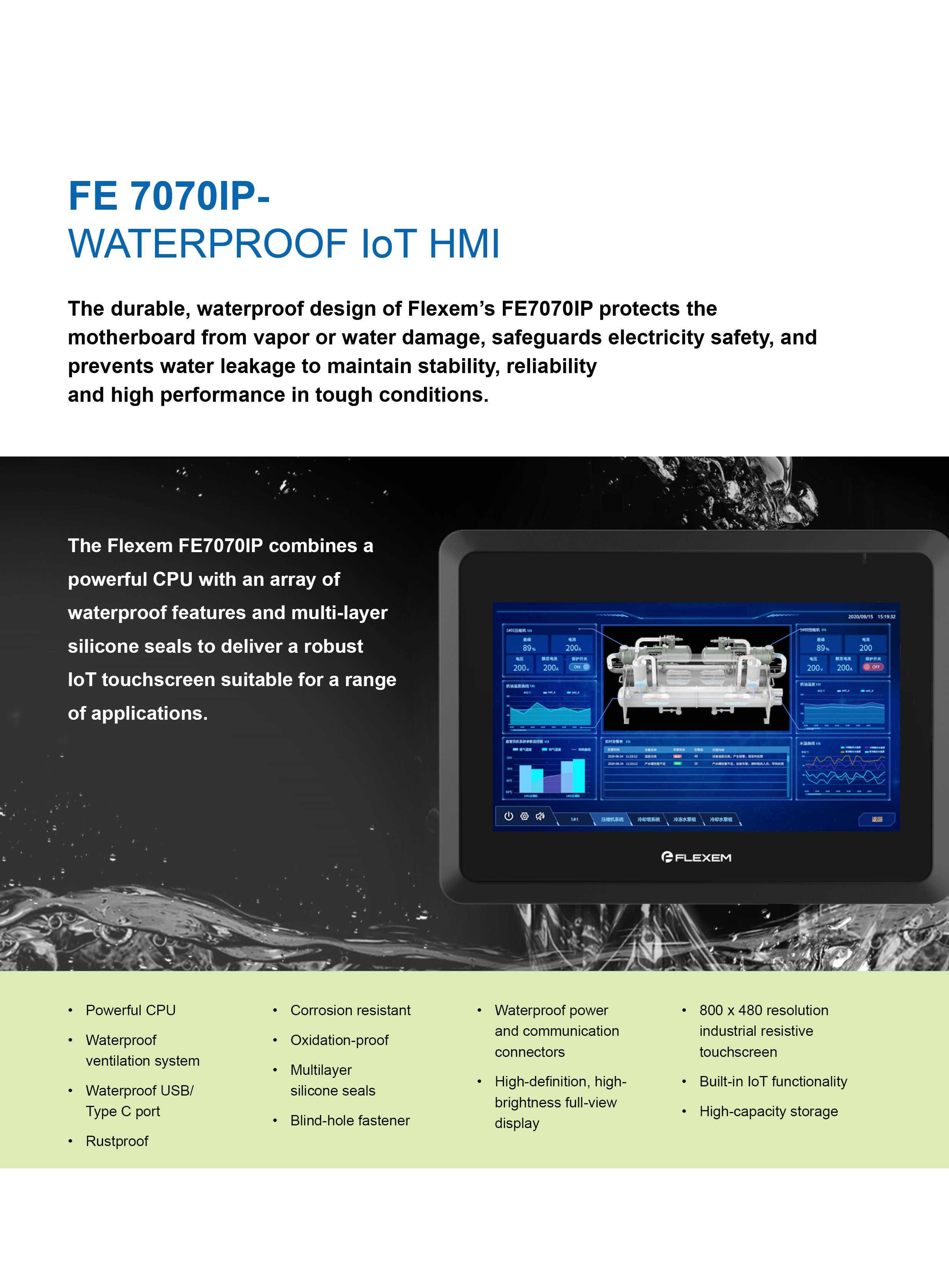

FE7070IP 7" HMI Water-proof

The Flexem FE7070IP combines a powerful CPU with an array of waterproof features and multi-layer silicone seals to deliver a robust IoT touchscreen suitable for a range of applications.

FEATURES FE7070IP
Display7" 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)50° / 70° / 70° / 70°
Resolution800 × 480
Colors16-bit
Brightness350 cd/m²
Touch Panel4-wire resistive touchscreen
CPU1GHz, Dual-core Cortex-A7
Storage4GB eMMC + 128MB DDR3
Ethernet PortNA
USB Port 1 × USB Type-C 2.0 port
1 × USB Type-A 2.0 port
Program Download MethodUSB slave / Flash drive
Serial PortCOM1: RS485
Rated Power< 10W
Rated VoltageDC24V (Working range DC 9V-28V)
Power ProtectionLightning surge protection
Power Interruption Tolerance< 5mS
CertificationCE, RoHS
Operating Temperature0-50℃
Storage Temperature-20-60℃
UV ResistanceNot for use in high UV environments
Environmental Humidity10-90% RH (Non-condensing)
Vibration Endurance10-25 Hz (X,Y,Z direction, 2G / 30 min)
Protection LevelWater-proof
Enclosure MaterialEngineering plastic
Cutout Size192mm × 138mm
Dimensions199mm × 145mm × 50mm
WeightAbout 500g
