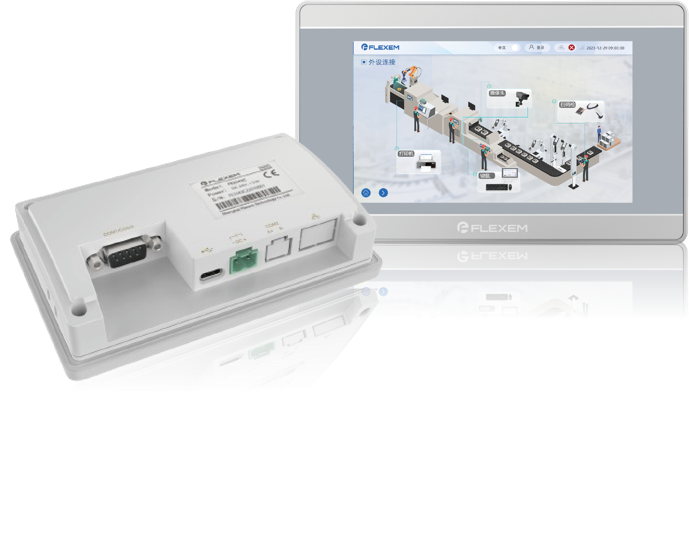

FE3370C 7-Inch HMI 16:9 800×480

3300 series HMI is an economical HMI product with 2 serial ports supporting RS232/485/422, 1 USB port supporting USB disk data storage and downloading, USB powered program downloading, support for FStudio configuration software, rich gallery, and powerful functions.

FE3300 Series Touch Screen

Economical Resistive HMI

Professional Appearance Design with High Aesthetics

1 USB port supports data storage and download

Plastic Enclosure，high cost-effectiveness，high Reliability

FStudio configuration software with extensive graphic library and powerful features

High Resolution, High Brightness, LED Backlight, Enhanced Energy Efficiency and Environmental Protection

3 series pors, more powerful expansion capability

FEATURES FE3370C
Display7" 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)50° / 70° / 70° / 70°
Resolution800 × 480
Colors16-bit
Brightness250 cd/m²
Touch Panel4-wire resistive touchscreen
CPU1GHz, Dual core Cortex-A7
Storage128 MB DDR3 + 128 MB Flash
RTCBuilt-in
Ethernet PortNA
SD CardNA
USB Port1 × USB Type-C OTG, 1 × USB Type-A
Program Download MethodUSB slave / Flash drive
Serial Port COM1: RS232 / RS485 / RS422
COM2: RS485
COM3: RS232
Rated Power< 10W
Rated VoltageDC 24V (Working range: DC 9V–28V)
Power ProtectionLightning surge protection
Power Interruption Tolerance< 5 mS
CertificationCE, RoHS
Operating Temperature0 – 50℃
Storage Temperature-20 – 60℃
UV ResistanceNot for use in high UV environments
Environmental Humidity10–90% RH (Non-condensing)
Vibration Endurance10–25Hz (X,Y,Z direction, 2G / 30 min)
Protection LevelFront: IP65 (NEMA panel), Rear: IP20
Enclosure MaterialEngineering plastic, gray
Cutout Dimensions190mm × 136mm
Dimensions204mm × 145mm × 34mm
WeightAbout 476g
